Best Tie Rod Hydraulic Cylinders for Industrial Machines
Hydraulic tie rod cylinders are a staple in industrial machinery, providing robust linear force with reliable performance. This guide highlights five top choices that align with common hydraulic needs, from general-purpose presses to machine tools and material handling. Each product section includes key specifications, typical applications, and maintenance-friendly features to help buyers compare options.
| Product | Bore | Stroke | Port Type | Rated Pressure | Brand |
|---|---|---|---|---|---|
| 3×10 Hydraulic Cylinder | 3″ | 10″ | 1/2″ NPT | 2500 PSI | AMRAP HYDRAULICS |
| 2×10 Hydraulic Cylinder | 2″ | 10″ | 3/8″ NPT | 2500 PSI | AMRAP HYDRAULICS |
| 2×8 Hydraulic Cylinder | 2″ | 8″ | 3/8″ NPT | 2500 PSI | AMRAP HYDRAULICS |
| Delavan PML2008-112ASAE | 2″ | 8″ | 3/8″ FNPT | 2500 PSI | Delavan Ag Pumps, Inc. |
| WEN TR3016A | 3″ | 16″ | 1/2″ NPT | 2500 PSI | WEN |
3×10 Hydraulic Cylinder — 3 Bore 10 Stroke
AMRAP HYDRAULICS’ 3×10 tie rod cylinder combines a 3-inch bore with a 10-inch stroke, delivering strong linear force with a robust 2500 PSI rating. The 1/2-inch NPT ports on a double-acting design support straightforward plumbing for typical industrial systems. A 1-inch pin hole configuration enables secure mounting, while the tie-rod construction provides high column load capacity for demanding applications such as hydraulic presses, machine tools, and material handling. Retracted length around 20.25 inches and extended length near 30.25 inches offer versatile stroke handling in compact layouts.
Key features include a 1/2″ NPT port, double-acting operation, and a robust 2500 PSI working pressure. This cylinder is suited for projects requiring reliable force with relatively compact dimensions, and it is commonly employed in equipment where maintenance simplicity and robustness are prioritized.
Applications: hydraulic presses, tooling machines, agricultural and construction equipment, and material handling systems. The cylinder’s end fittings and standard tie-rod design facilitate field serviceability and part replacement when needed.
2×10 Hydraulic Cylinder — 2 Bore 10 Stroke
This AMRAP HYDRAULICS 2×10 tie rod cylinder offers a 2-inch bore and a 10-inch stroke with a double-acting design, supported by 2500 PSI. The 3/8-inch NPT ports provide standard hydraulic hose compatibility, and the 1-inch pin holes enable secure mounting for a wide range of machines. The compact bore-to-stroke ratio makes it a versatile option for smaller presses, clamps, or actuation roles where space is at a premium, while maintaining robust load handling with a high column capacity.
Engineering notes: tie-rod end cylinders are favored for their ease of maintenance, modularity, and straightforward field serviceability. This model emphasizes robustness and a straightforward installation path for workshops and production lines alike.
Applications: general purpose actuation in machine tools, presses, agricultural machinery, and material handling where dependable repeatable force is required over a longer stroke.
2×8 Hydraulic Cylinder — 2 Bore 8 Stroke
The 2×8 AMRAP HYDRAULICS cylinder delivers an 8-inch stroke with a 2-inch bore and 2500 PSI rating, featuring 3/8-inch NPT ports and 1-inch pin holes for secure mounting. Its tie-rod construction makes it a practical choice for compact automation tasks, bench presses, or clamp systems where a balance of speed and force is essential. The shorter stroke helps achieve quicker cycling in repetitive operations, while maintaining robust structural integrity under load.
Design notes: the small bore with 8-inch stroke is a common configuration for workholding devices, light presses, or lifting applications that require precise, controlled advancement. Maintenance is simplified by the tie-rod assembly and standard porting.
Applications: assembly lines, material handling, light hydraulic presses, and tooling fixtures where consistent force across a moderate stroke is needed.
Delavan PML2008-112ASAE PowerMAX 2×8
This Delavan ASAE-certified tie-rod cylinder brings a 2-inch bore and 8-inch stroke with a 2,500 PSI working pressure. The 3/8-inch FNPT porting and a 1-inch rod diameter support reliable actuation in industrial settings. Pin-to-pin dimension for retracted to extended lengths is about 20-1/4 inches to 28-1/4 inches, making it a practical choice for equipment modernization, retrofits, or new machine build projects that require ASAE-compliant components.
Application notes: ASAE certification indicates compatibility with standardized mounting and performance expectations in agricultural and industrial equipment. The tie-rod design provides ruggedness with straightforward maintenance and replacement parts.
CWA Hydraulics TR Tie Rod Cylinder 2″ x 10″
The CWA Hydraulics 2″ bore by 10″ stroke tie rod cylinder provides 2500 PSI with SAE 8 and 3/8 NPT port options. A straightforward 2″ bore and a 10″ stroke layout suits a variety of actuation tasks on hydraulic presses, tools, and machinery. The standard tie-rod design supports easy maintenance and component replacement, while the dual port options enable flexible plumbing configurations for different hydraulic systems.
Notes: This model emphasizes versatility and compatibility with common hydraulic hoses and fittings. Operators should verify mounting clearance and pin diameter compatibility with their frame or tooling.
CWA Hydraulics TR Tie Rod Cylinder 4″ x 8″
This 4-inch bore, 8-inch stroke CWA tie rod cylinder is designed for heavier loads, delivering consistent force with a 2500 PSI rating. The tie-rod construction plus standard porting supports dependable performance in demanding fixtures and equipment. The 20-1/4 to 28-1/4 inches pin-to-pin retract-to-extended length provides ample reach for larger machines or retrofits in production environments.
Considerations: higher bore means greater force, but larger overall footprint and potential mounting challenges. Ensure frame clearance and compatible mounting hardware before installation.

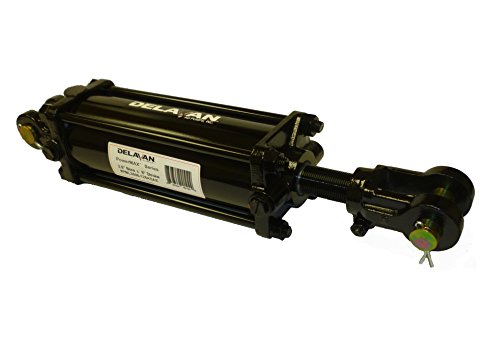

Delavan PML3508-125ASAE PowerMAX 3.5×8
This Delavan ASAE-certified tie-rod cylinder features a 3.5-inch bore and 8-inch stroke, rated at 2,500 PSI. With a 1.25-inch rod and 1-inch clevis pin diameter, it supports standardized mounting and robust actuation in agricultural and industrial contexts. The retract-to-extend pin-to-pin length is approximately 20-1/4 inches to 28-1/4 inches, offering workable travel in mid-sized equipment and retrofit projects.
Summary: ASAE-certified power and compatibility with common mounting standards make this option suitable for equipment standards conforming to industry guidelines, while providing reliable service in demanding environments.
Buying Guide: Key Considerations For Tie Rod Hydraulic Cylinders
- Bore and Stroke: Match bore size to required force and stroke length to the needed travel. Larger bores deliver more force but require more space.
- Port Type and Size: Ensure port connections (NPT or SAE, 1/2″, 3/8″) align with your hose fittings and plumbing work. Consider seal load and potential leakage points.
- Rated Pressure and Load Capacity: Check the system’s operating pressure and the cylinder’s column load capacity to prevent overloading and ensure longevity.
- Mounting and End Fittings: Tie-rod cylinders rely on robust mounting with proper pin diameters and clevis sizes. Verify compatibility with your frame or tooling.
- ASAE Certification: If your equipment requires standardized mounting and compatibility, ASAE-certified units offer assurance for agricultural machinery and related systems.
- Maintenance Accessibility: Choose cylinders with easy piston rod inspection, port cleaning, and straightforward part replacement to minimize downtime.
- Service Life and Environment: Consider exposure to dust, solvents, or extreme temperatures. Some cylinders offer seals and coatings designed for harsh environments.
- Portability vs. Size: For retrofit projects, ensure overall dimensions fit existing housings or frames while providing sufficient travel and force.
- Cost vs. Performance: Balance initial cost with expected service life, maintenance needs, and replacement part availability to optimize total cost of ownership.
Across these options, buyers should prioritize compatibility with existing hydraulic systems, mounting geometry, and lifecycle maintenance. The five selections above provide a range of bores, strokes, and certifications to suit typical industrial applications, while maintaining a focus on reliability, ease of maintenance, and standard port configurations.
