Best Carbon Fiber Floor Pan Options for Motorcycles and More
When upgrading a motorcycle’s undercarriage, a carbon fiber floor pan can reduce weight and improve protection. This guide highlights five top options, spanning sport bikes from BMW to Kawasaki, and includes a practical buying guide to help you compare materials, manufacturing processes, and fitment. Each entry showcases key features and what to expect in terms of installation and durability.
| Product | Brand | Key Benefit | URL |
|---|---|---|---|
| Tekarbon, Carbon Fiber Belly Pan | TEKARBON | 2×2 Twill weave, 3k carbon fiber | Product Page |
| Carbon Fiber Belly Pan Extension, BMW S1000RR 2012-2014 | Carbon Fiber Racing | Vetted for autoclave prepreg carbon fiber construction | Product Page |
| Carbon Fiber Belly Pan, BMW S1000XR 2014-2018 | Carbon Fiber Racing | Dry carbon with premium vacuum bagging | Product Page |
| Carbon Fiber Belly Pan, BMW S1000RR 2015-2016 | Carbon Fiber Racing | Dry carbon, autoclave processed | Product Page |
| Kawasaki Ninja ZX-14R Fairing Kit (ABS, 6-8 pieces) | HLOMAUD | Direct-fit replacement fairings with carbon-like appearance | Product Page |
Note: All product links are provided for reference; verify fitment and compatibility with your motorcycle model before purchase.
Tekarbon Carbon Fiber Belly Pan For XB Models
The Tekarbon belly pan is built from high-quality 3k carbon fiber with a 2×2 Twill weave, designed to fit all XB models. This pan emphasizes a lightweight profile with durability suitable for sport riding. Its weave pattern helps balance aesthetic appeal with structural strength, making it a strong option for riders seeking weight reduction without sacrificing protection of the undercarriage.
Key considerations:
– Fitment across related XB models; confirm generation and mounting points.
– Twill weave appearance; may influence how it wears and ages.
– Lightweight construction aimed at endurance riding and track days, rather than heavy-duty off-road use.
Recommended care: avoid harsh solvents; clean with mild soap and water. Regular inspection for cracks or delamination is advised after hard track sessions.
BMW S1000RR Belly Pan Extension
This belly pan extension from Carbon Fiber Racing uses highly advanced vacuum bagging and autoclave processes to produce 100% prepreg carbon fiber, also known as dry carbon. The result is a rigid, performance-oriented piece designed to strengthen undercarriage protection while maintaining a sleek, race-ready appearance.
Key considerations:
– Premium autoclave-cured prepreg carbon fiber offers stiffness and low weight.
– Limited Lifetime Warranty provides long-term confidence in fit and durability.
– Ensure proximity to exhaust routing and on-bike clearance to prevent heat or interference.
Care notes: avoid impact-heavy impacts that could stress the undercarriage; verify fitment with your RR model year before installation.

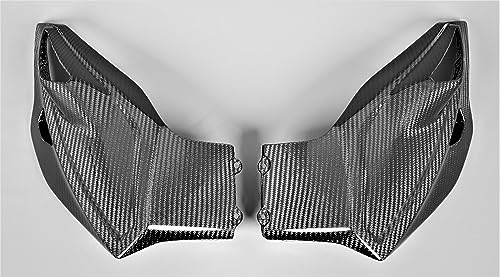

BMW S1000XR Belly Pan For 2014-2018
Designed for the S1000XR lineup, this belly pan uses 100% prepreg carbon fiber with advanced manufacturing controls. The result is a resilient, lightweight protective component that helps shield the engine and lower frame while preserving ground clearance and aerodynamics.
Key considerations:
– Correct model-year fit; XR variants may have unique mounting points.
– Autoclave processing yields consistent fiber-to-resin ratios and improved impact resistance.
– Warranty coverage supports ongoing use in street and track environments.
BMW S1000RR Belly Pan for 2015-2016
This belly pan continues the same premium approach with 100% prepreg carbon fiber and autoclave processing. The piece is built to endure racing and aggressive street riding while providing a streamlined profile that reduces drag and weight.
Key considerations:
– Aligns with 2015-2016 RR subframes and engine guards; verify mounting hardware.
– The dry carbon finish offers a refined aesthetic suitable for show bikes as well as performance builds.
– Regular inspection for heat exposure near exhaust components is advised.
Kawasaki Ninja ZX-14R Fairing Kit (6 Pieces)
This ABS-based fairing kit for the Kawasaki Ninja ZX-14R delivers a carbon-fiber appearance with durable construction. While not a true carbon fiber floor pan, the kit complements a carbon-fiber underbody upgrade by preserving the bike’s streamlined silhouette and protecting bodywork at the rear panels and fairings.
Key considerations:
– ABS material offers good impact resistance and heat tolerance, but weight differs from true carbon fiber.
– Direct aftermarket replacement design means easy installation on stock mounting points.
– Ensure correct year and model compatibility to avoid gaps or alignment issues.
Buying Guide: Key Purchase Considerations
Overview: When choosing a carbon fiber floor pan or belly pan, buyers should weigh material quality, manufacturing process, and fitment against the intended use—street riding, track days, or racing. Carbon fiber options vary by weave, resin systems, and curing methods, all of which impact strength-to-weight ratio and durability.
- Material and weave: Twill weaves (2×2 or 3k) offer a balanced look with good torsional strength. Plain weaves are typically stiffer but heavier. Understand whether you want a visible weave or a colored finish that hides imperfections.
- Manufacturing process: Vacuum bagging and autoclave curing (dry carbon) yield high stiffness and uniform resin distribution. Prepregs and autoclave-cured parts generally command a premium but provide consistent performance.
- Fitment and mounting: Confirm model-year compatibility, mounting points, and clearance around exhausts and heat shields. Some kits are designed for stock hardware, while others require additional brackets or modifications.
- Weight savings vs. protection: While carbon fiber reduces weight, some riders prioritize increased protection in the undercarriage. Ensure the chosen pan provides adequate coverage for typical riding conditions.
- Warranty and support: Some products offer limited lifetime warranties, which can be valuable for long-term ownership and potential warranty coverage during track use.
- Maintenance: Carbon fiber surfaces can attract grime; avoid harsh solvents and use mild cleaners. Inspect for delamination, cracks, or fiber exposure after heavy use or impacts.
- Price-to-performance: High-end prepregs and autoclave-cured parts deliver performance gains but at a higher upfront cost. Balance budget with intended use and expected service life.
For shoppers prioritizing track-ready protection with minimal weight, autoclave-processed prepregs offer strong performance. For enthusiasts seeking a show-worthy aesthetic with strong durability, a 2×2 Twill carbon fiber option provides a favorable balance of appearance and strength. Always verify that the product you choose matches your bike’s specific model year and sub-model to ensure proper fitment and function.
