Best 1/2-20 Wheel Studs for Trailers and Vehicles
The right 1/2-20 wheel studs ensure secure wheel mounting across trailers and light trucks. This article spotlights top 5 1/2-20 wheel studs, drawing from trusted brands and varying formats to fit Lippert and Dexter axles as well as common 2000-7000 lb applications. Each entry includes key specs, materials, and installation notes to help you compare options quickly and choose the best match for your axle system.
| Product | Brand | Thread / Length | Approximate Length |
|---|---|---|---|
| Moser Engineering Wheel Stud | Moser Engineering | 1/2-20 in | 3.000 in |
| 6PCS Wheel Studs 1/2”-20 UNF (Trailer) | Hitchvoyager | 1/2-20 in | 2.2 in (55 mm) |
| WANTONE RACING 5pcs 1/2″-20 x 2 in | WANTONE RACING | 1/2-20 in | 2.0 in |
| 6PCS 1/2″-20 UNF Trailer Wheel Studs | YGDMD | 1/2-20 in | 2.11 in |
| Lakapre 12Pcs 1/2″-20 UNF Wheel Studs | Lakapre | 1/2-20 in | 2.2 in |
Moser Engineering Wheel Stud, 1/2-20, 3.000″ Long
Moser Engineering provides a 1/2-20 wheel stud with a 3.000 inch length and a 0.625 inch knurl. Made in the United States, this steel wheel stud features a black oxide finish for added corrosion resistance. The package includes 10 studs, suitable for replacement in a range of trailer and light-vehicle hubs needing a reliable, rigid connection between wheel and axle.
6PCS Wheel Studs 1/2”-20 UNF Trailer, 2.2″ Over Length
This set offers 6 trailer wheel studs with 1/2-20 UNF thread, 2.2″ height, and a 60-degree tapered angle. The studs are fully solid steel and galvanized for corrosion resistance, with a hex of 0.75″ (19 mm). They are designed for Lippert and Dexter axles and tested for salt spray to OEM standards. Ideal for quick replacements on 2000-7000 lb trailers, RVs, and campers’ hubs.
WANTONE RACING 5pcs 1/2″-20 x 2 in. UHL Length Wheel Studs
WANTONE RACING provides five 1/2″-20 x 2″ press-in wheel studs with 0.61″ knurl, designed for Dexter 3500-7000 lbs hubs. This set includes corresponding lug nuts and is compatible with several Dexter hubs such as 8-247 to 8-256 series. It suits trailer and heavier-duty applications that require precise alignment and secure torque.
6PCS 1/2″-20 UNF Trailer Wheel Studs With Galvanized Finish
These six 1/2″-20 UNF wheel studs are compatible with Dexter/Lippert axles and support 2000-7000 lb trailers. They feature a 2.11″ overall length with a 0.73″ head diameter and a 0.56″ spline, built from Grade 12.9 steel. The product emphasizes a robust, secure fit to minimize wheel movement and enhance road safety.

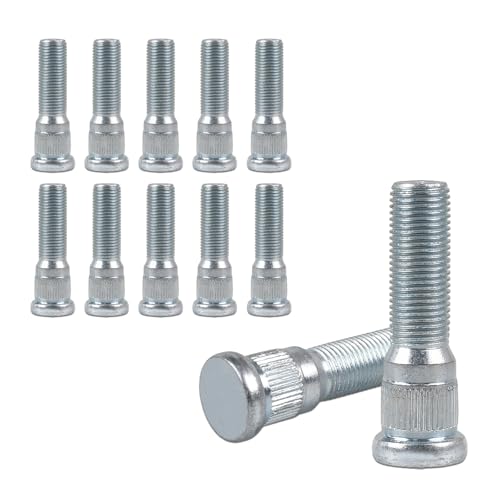

Lakapre 12Pcs 1/2″-20 UNF Wheel Studs
Lakapre offers 12 wheel studs with 0.617″ spline and 0.75″ hex, designed for Lippert 3500 lb and Dexter 4400 lb axles. The studs are galvanized for corrosion resistance and feature a 1/2″-20 UNF thread with 2.2″ total length. They are presented as a durable option for utility trailers, RVs, and campers, aiming to ensure secure wheel mounting under heavy use.
shliyitx 10PCS Wheel Studs For Lippert Trailer Axles
Shliyitx provides 10 wheel studs compatible with Lippert trailer axles from 2,000 to 3,500 lbs. The studs use a 1/2″-20 UNF thread, with 0.54″ spline and 0.69″ head, totaling 2.2″ in length. The design emphasizes robust fastening to prevent wheel loosening and to maintain safe operation on trailers under typical loads.
Buying Guide
Key considerations when selecting 1/2-20 wheel studs:
- Axle compatibility: Ensure the studs match the axle brand and model (Dexter, Lippert, etc.) and the rated load (2000-7000 lb ranges are common).
- Thread and length: Most trailer studs use 1/2-20 UNF. Length should suit your hub depth and wheel hole thickness to avoid protrusion or inadequate engagement.
- Knurl diameter and head size: A 0.61–0.75 inch knurl and head diameter around 0.73–0.75 inch help ensure a secure fit and proper seating in the hub.
- Material and finish: Grade 12.9 steel and galvanized or black oxide finishes enhance corrosion resistance and durability in demanding environments.
- Installation and replacement: Consider sets that provide multiple studs to facilitate maintenance, especially for trailers that operate in harsh or coastal conditions.
- Open-end vs. press-in: Open-end lug studs and press-in designs suit different hub configurations; verify compatibility with your wheel nuts and lug patterns.
- Quality testing: Look for salt spray or OEM-standard quality tests to gauge long-term performance in salt-prone environments.
- Quantity options: For a complete hub rebuild, larger sets (e.g., 12 or 24 pieces) reduce the chance of mismatched replacements and simplify maintenance.
Compared to generic hardware, purpose-built wheel studs for Lippert and Dexter hubs offer improved fit, reliability, and safety. When choosing, prioritize compatibility with your specific axle model and the intended load. If you’re unsure, consult your trailer’s axle documentation or a professional technician to confirm thread pitch, length, and knurl diameter requirements.
